VANSE YZ25-4 2.5 Meters Width Dual Slope Slope Four Wheel Concrete Laser Vibrating Levelling Screed Machine Concrete Laser Screed

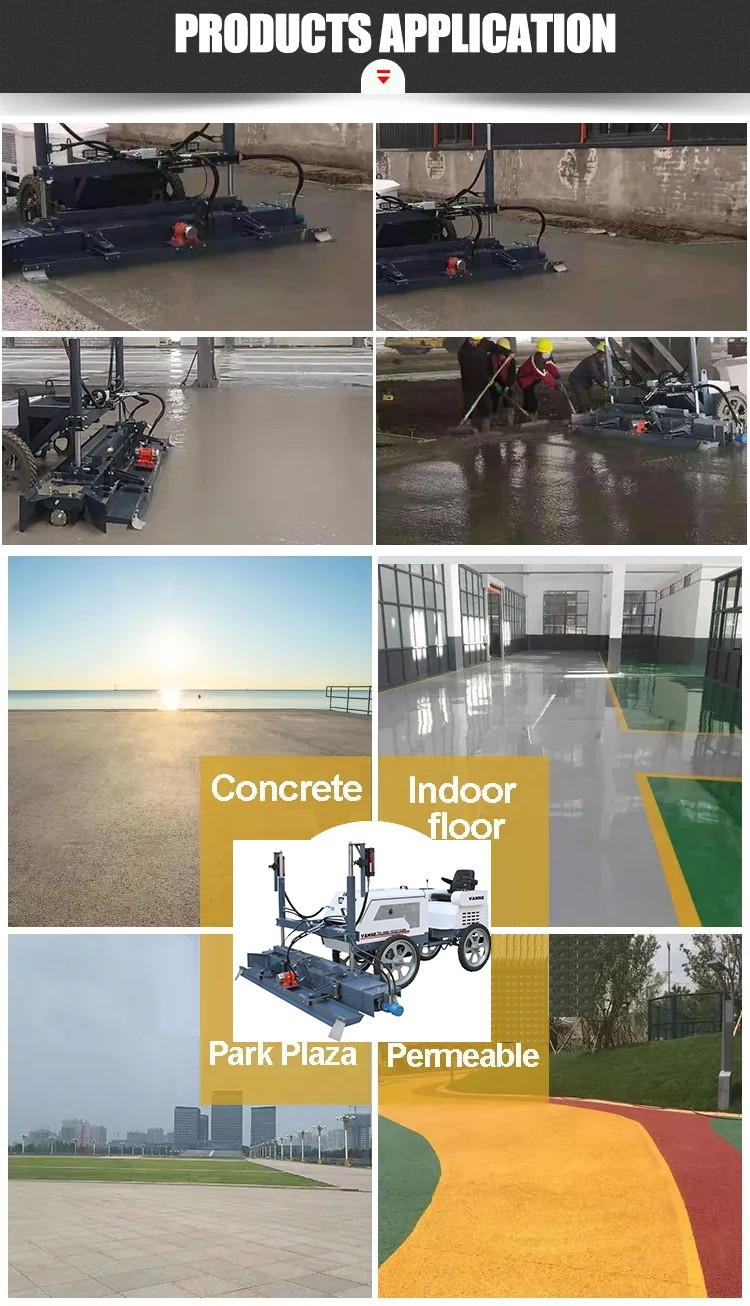

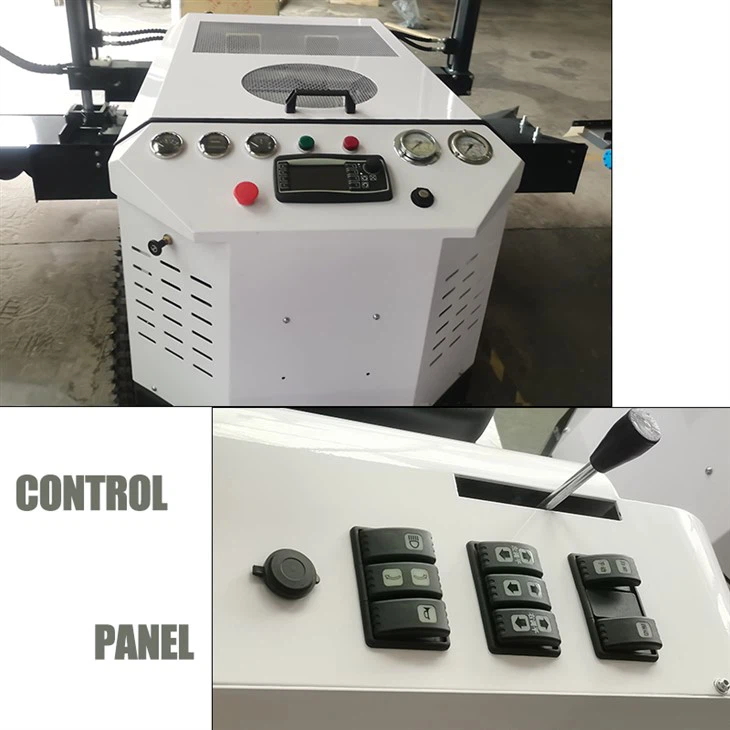

YZ25-4 Konkrit laser screed High quality and efficiency concrete equipment with automatic laser system control. The Laser screed machine is used in large area concrete construction, such as the modern industrial workshop, the large market, storage, airport, the plaza, and so on. Two control systems: touch screen control plus press-button control
Product Details of VANSE YZ25-4 2.5 Meters Width Dual Slope Slope Four Wheel Concrete Laser Vibrating Levelling Screed Machine Concrete Laser Screed
VANSE YZ25-4 Easy Operating 2.5 Meters Hydraulic Laser Receiver Concrete Screed Machine Vibrating Leveling Laser Concrete Screed
VANSE YZ25-4 Avvanzat Disinn 25 HP 2.5 Meters Easy Operating Farm Laser Self Level 4 Wheel Ride-On Concrete Laser Screed Machine
Prodott tip
Isem
Erbgħa rota konkrit laser screed magna
Unità
YZ25-4
Magna
Mod
HONDA GX690
Tip
petrol,Air cooled 4 stroke,Double cylinder
Enerġija
25
HP
1.9
L
Fjuwil tank volum
34
L
Livellar sistema
Ħidma mod ta ' screed ras
Screed wisa '
2500
Mm
Paviment modalità
Pavimentar ħxuna
60-300
Mm
Kamin conveyor qawwa
Baxx veloċità kbir torque ċiklojdali idrawliku mutur
Kontroll mod ta ' vibrating sistema
Vibrazzjoni mutur
Eċċitament forza
2000
N
50
Hz
Kontroll mod ta ' laser sistema
Mikrokompjuter laser skannjar
Kontroll effett ta ' laser sistema
Ċatt wiċċ,Slope,Double slope(tridimensjonali)
Sewqan sistema
Issuq tip
Reducer flimkien ma ' Mutur
Rota
Solidu titqib prova tajer
Veloċità
0-40
m/min
Operazzjoni modi
Sit pożizzjoni
Immuntati fuq wara
Immaniġġja kontroll,Stepless veloċità bidla
Qed idur
Idrawliku enerġija assistit,Steering rota kontroll
Tindif sistema
Enerġija
Estern mutur
Fluss teoretiku
20
Ikklassifikat pressjoni
7
Mpa
Daqs u piż
3370*2890*1850
Nett piż
800
